Insulation and mechanical support
Busbar insulators and column insulators for fixing busbars, plates, subassemblies and conductive elements inside the electrical panel.
Technical and commercial supply in Spain and Portugal
Insulators, busbar supports, modular systems for copper busbars, feed-through insulators, distribution blocks, rails, accessories and components for the internal assembly of electrical panels.
TOT POWER Iberia supplies BALDI in Spain and Portugal, supporting panel builders, system integrators, maintenance companies, engineering departments and technical buyers that require reliable components for low-voltage power distribution.
BALDI insulators and components for mounting, support and electrical separation in industrial panels.
BALDI is an Italian manufacturer specialised in polyester insulators, busbar systems, cable wiring ducts, flexible trunking, steel accessories and other electro-industrial components for the internal assembly of electrical panels.
Its catalogue is aimed at panel builders, industrial installers, system integrators and maintenance teams that need robust, standardised mechanical and insulating components for power distribution applications.
Here we focus in greater detail on the insulators and busbar distribution family, as it is the range most closely related to power panels, copper busbars and distribution solutions inside the electrical cabinet.
The insulators and busbar distribution family includes the components needed to support, insulate, separate, distribute and connect copper busbars inside low-voltage electrical panels.
Busbar insulators and column insulators for fixing busbars, plates, subassemblies and conductive elements inside the electrical panel.
Modular systems for arranging busbars by phase, adjusting phase spacing and solving layouts with one or several busbars per phase.
Feed-through insulators, four-pole distribution blocks and breaker outgoing support solutions for clean, maintainable power distribution.

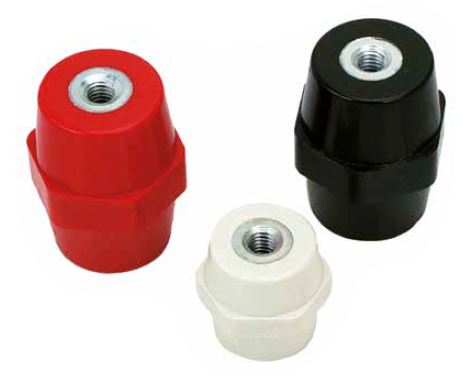

ISOESA busbar insulators are designed to provide electrical separation and mechanical support for copper busbars and other conductive elements inside the electrical panel.
Manufactured from polyester compound reinforced with glass fibre, with female metal inserts incorporated at the ends. The range includes different diameters, heights and metric threads to suit electrical panels with different power levels and layouts.
The male-stud configuration simplifies certain assemblies when direct fixing by stud is required at one or both ends of the insulator.

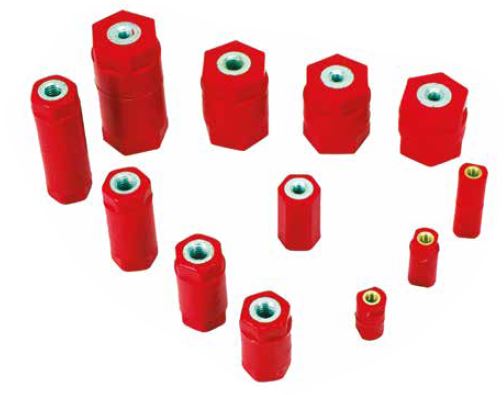

The column insulator range is designed for internal fixing and spacing using cylindrical or prismatic geometries, suitable for supporting conductive elements, auxiliary plates and subassemblies inside the panel.
BALDI offers modular busbar support systems for electrical panels with different requirements in terms of phase spacing, number of busbars per phase, busbar thickness and mechanical resistance to electrodynamic forces.
Modular busbar support system for 10 mm busbars, with blocks and side supports that allow different busbar heights and phase-to-phase configurations.
Modular comb-shaped busbar support blocks designed to adjust support spacing, phase spacing and layouts with one or several busbars per phase.
Universal modular block that supports busbars of different thicknesses by rotating the part and selecting the appropriate support face.

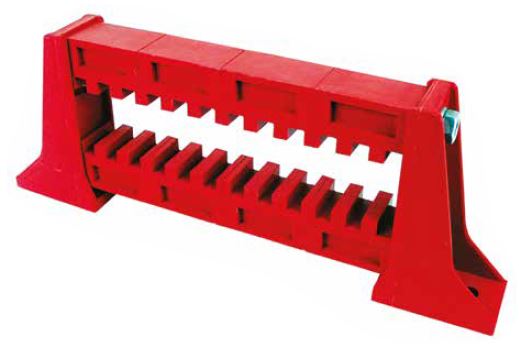

KAUTZ is made up of blocks and side supports manufactured from glass-fibre-reinforced polyester. The system enables support assemblies to be configured according to the number of busbars per phase and the required phase spacing.

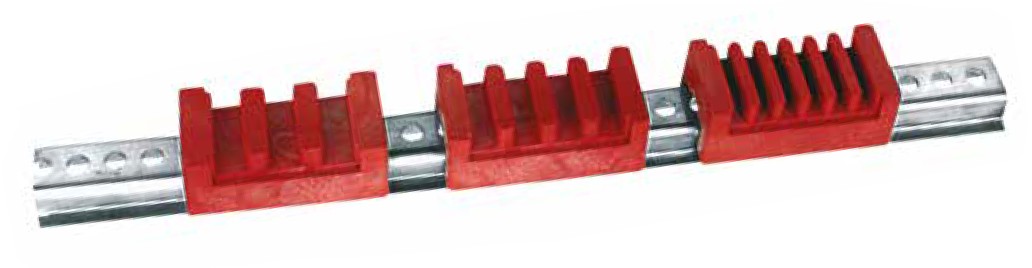

MULTIBAR allows support assemblies to be configured on a rail, adjusting the distance between blocks to match the number of busbars, phase spacing and available height inside the panel.

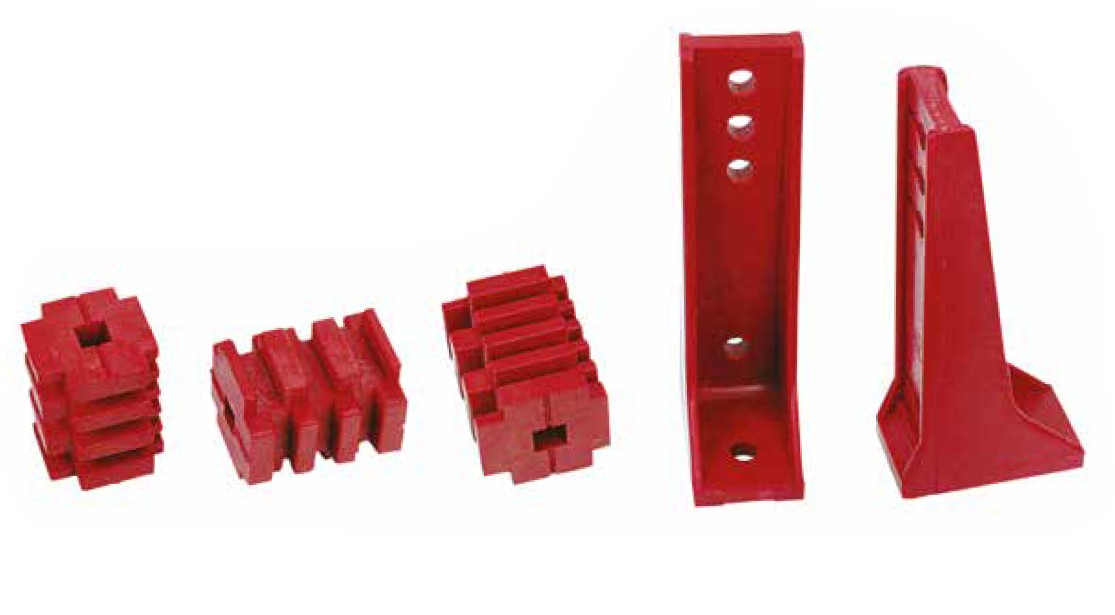

ISOCROSS supports 5, 6, 8 and 10 mm thick busbars by using the correct orientation of the block and its different support faces. The fixing side supports allow operation with different busbar heights.
In addition to the main insulators and supports, BALDI offers specific components to simplify busbar outgoing connections from breakers, power feed-through between panel areas and four-pole distribution.
Multi-phase mini busbar supports for breaker outgoing connections, designed to guide and support copper busbars in compact connection areas.
Feed-through insulators for electrical connection between internal and external parts of panels or equipment, with a metal stud and insulating body.
Four-pole distribution blocks for copper busbars, available for busbars up to 16 mm and up to 25 mm, depending on current and assembly design.

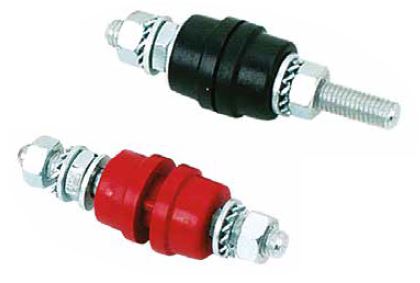

ISOPASS is intended for electrical connections between internal and external parts of panels or equipment. It combines a metal connection stud with an insulating body, allowing panels or barriers to be crossed while maintaining insulation and construction order.

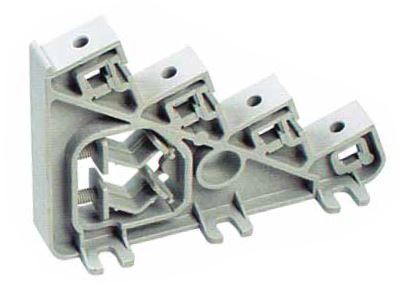

BAR-FIX helps organise four-pole distribution systems with copper busbars, simplifying assembly and power routing towards different circuits within the panel.
The choice of an insulator or busbar support should not be based only on mechanical dimensions. Voltage, insulation, temperature, electrodynamic forces, phase spacing, number of busbars per phase and support spacing must also be considered.
TOT POWER Iberia can help review the most suitable product family and channel the technical enquiry whenever a project requires specific validation or additional documentation.
In addition to the insulators and busbar distribution range, BALDI offers other product families to complete the internal assembly of electrical panels. For these sections, we recommend requesting or downloading the full technical documentation.
Metal spacers, flat and inclined supports, metal rails, omega rails and PVC omega rails.
Copper busbars with threaded holes, tin-plated bars, insulated flexible busbars, grounding braids and ETP copper.
Spiral cable wrap, expandable braided sleeving, split sleeving and polyolefin heat-shrink tubing.
Thermostats, hygrostats, panel sockets, anti-condensation heaters, fans and filters.
Compact lamps, slimline lamps, LED panel lights and lighting accessories.
Cable ties, adhesive bases, power terminals, ferrules, lugs, terminal blocks, tools and drawing pockets.
Wiring ducts, duct cutting tools, accessories for PVC ducts and flexible wiring ducts.
Ventilation units, airflow monitoring, thermostats, hygrostats, switch modules and fans.
Complementary ranges such as self-adhesive sleeves and double-sided tapes for specific applications.
TOT POWER Iberia provides technical and commercial support for the selection and supply of BALDI components in Spain and Portugal. Our objective is to offer industrial customers a direct channel to resolve enquiries, identify references, request documentation and receive quotations.
We work with electrical panel builders, system integrators, OEMs, engineering companies, industrial maintenance teams and technical purchasing departments that require standardised components for internal assembly, busbars and electrical distribution.
TOT POWER Iberia supplies BALDI components in Spain and Portugal, offering technical and commercial support to industrial customers, panel builders, system integrators, maintenance companies and technical purchasing departments.
You can request busbar insulators, column insulators, busbar systems, mini busbar supports, ISOPASS feed-through insulators, BAR-FIX distribution blocks, rails, supports, copper busbars, sleeving, wiring accessories, climate control, lighting and ventilation components for electrical panels.
Yes. Send photos, dimensions, visible reference, thread type, busbar size and application. With this information, we can help identify the reference or propose a suitable alternative within the available range.
It is advisable to indicate busbar dimensions, number of busbars per phase, rated current, expected short-circuit current, operating voltage, phase spacing, available space, temperature and a drawing or photo of the assembly.
Yes. You can request technical documentation through the contact form or download the full catalogue from the TOT POWER Iberia downloads area. We can also provide specific information by product family or reference.
Indicate the product family, reference, dimensions or application. For spare parts or replacement cases, please attach photos of the component and its assembly inside the electrical panel.
You can also download the full BALDI catalogue from the TOT POWER Iberia downloads area or request the specific technical documentation you need through the form.
